Angles

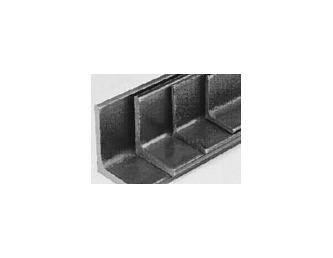

Equal angle bars (angles) are manufactured at SIDENOR’s factory in Thessaloniki, at a length of 6 metres, with a leg length ranging from 20mm to 50mm and with a leg thickness of between 3mm and 6mm. Moreover, STOMANA SA’s factory in Bulgaria manufactures angles with a leg length from 60mm to 100mm and a leg thickness from 6mm to 12mm, at lengths of 6 and 12 metres. Angles are products with a wide range of applications, being used in fencing, as support piles for sheds in vineyards, for sheds and roofs, coachworks, and for the construction of steel power towers, etc.
-
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES STEEL GRADE CHEMICAL COMPOSITION MECHANICAL PROPERTIES C (%) P (%) S (%) YIELD STRENGTH TENSILE STRENGTH ELONGATION max max max (N/mm2) min (N/mm2) 5d0, (%) min S235JR (St 37-2) 0.170 0.040 0.040 235 360-510 26 S275JR (St 44-2) 0.210 0.040 0.040 275 410-560 23 FEATURES TYPE: Hot-Rolled bars of equal angles having round edges (EQUAL ANGLES) STEEL GRADE: - S235JR according to ELOT-ΕΝ 10025 (RSt 37-2 according to DIN 17100)
- S275JR according to ELOT-ΕΝ 10025 (RSt 44-2 according to DIN 17100)FORM - DIMENSIONS: Straight Bars with side width from 20 to 100mm and side thickness from 3 to 12mm LENGTH - TOLERANCE: Bar length 6m -12m with tolerance -0 / +100 mm PACKING - WEIGHT: Bundles weighing approximately 2,500 kg DIMENSIONS, WEIGHT, TOLERANCES: According to EN 10056 (DIN 1028) SIDENOR SA (ATHENS) - Export Dept.
Address: 33, Amaroussiou-Chalandriou street Postal Code: GR-15125 City: Athens Area: Attiki Country: GREECE Telephone: (+30)-210-6787111 Fax: (+30)-210-6787740 e-mail: SIDENOR SA (THESSALONIKI) - Export Dept. Address: 12th km National Road Thessaloniki-Veria Postal Code: GR-57008 City: Thessaloniki Area: Ionia Country: GREECE Telephone: (+30)-2310-790111 Fax: (+30)-2310-722288 e-mail: -
DIMENSIONS & WEIGHTS of Equal Angles Merchant bars-Angles
