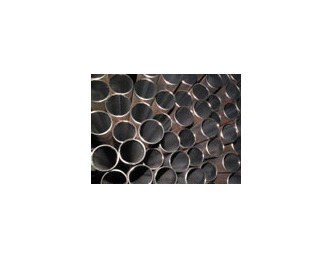

SIDENOR Group supplies the Greek and the international markets with a complete range of common steel pipes (widely known in the market as “yellow”, “common” or RWT pipes), cold-formed or hot-formed from hot-rolled steel strip, hot-dip galvanised or black, with threaded ends and one joint. Moreover, it has a wide range of self-coloured structural steel pipes, cold-formed or hot-formed from hot-rolled steel strip.
Construction Steel pipes for other uses are produced at the plants in Almiros, Magnesia, and Ηalkida. The steel pipe manufacturing unit in Almiros has state-of-the-art equipment and has an annual manufacturing capacity of 150,000 tonnes. The plant in Ηalkida manufactures hot-rolled steel pipes, fully annealed at 850οC – 1,100οC, with unique workability and strength advantages, and has an annual manufacturing capacity of 35,000 tonnes.
These pipes are produced in St37-2 / S235 steel grade.
CHARACTERISTICS & DIMENSIONS
The common (yellow) steel pipes are available with thread and couple in the following dimensions:
| CHARACTERISTICS & DIMENSIONS | |||
| GALVANIZED | NON-GALVANIZED | ||
| Nominal Diemeter (inches) | Thickness (mm) | Nominal Diemeter (inches) | Thickness (mm) |
| ½” | 1.8 | ½” | 1.8 |
| ¾” | 2.0 | ¾” | 2.0 |
| 1” | 2.2 | 1” | 2.2 |
| 1 ¼” | 2.3 | 1 ¼” | 2.3 |
| 1 ½” | 2.3 | 1 ½” | 2.3 |
| 2” | 2.5 | 2” | 2.5 |
| 2 ½” | 2.7 | 2 ½” | 2.7 |
| 3” | 2.9 | 3” | 2.9 |
| 4” | 3.1 | 4” | 3.1 |
The common (yellow) steel pipes are for general use without any specific requirements and/or specifications (standards). The regulations (TEE & Π.Δ. 38/91) do not allow their use in water/heating/gas networks.
Construction steel pipes for other uses are available in the following dimensions:
| CONSTRUCTION PIPES FOR GENERAL USES | |||||||||||||
| Nominal Diemeter | Thickness (mm) | ||||||||||||
| mm | inches | 1.8 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.6 | 6.35 | 7.1 | 8.0 |
| 21.3 | ½" | X | X | X | |||||||||
| 26.9 | ¾" | X | X | X | |||||||||
| 33.7 | 1" | X | X | X | X | ||||||||
| 42.4 | 1 ¼" | X | X | X | X | ||||||||
| 48.3 | 1 ½" | X | X | X | X | ||||||||
| 60.3 | 2" | X | X | X | X | X | X | X | X | ||||
| 76.1 | 2 ½" | X | X | X | X | X | X | X | X | X | |||
| 88.9 | 3" | X | X | X | X | X | X | X | X | X | |||
| 114.3 | 4" | X | X | X | X | X | X | X | X | X | X | X | |
| 139.7 | 5" | X | X | X | X | X | X | X | X | X | X | ||
| 168.3 | 6" | X | X | X | X | X | X | X | X | X | |||
PACKING
Bundles containing a sufficient number of binding metal straps bearing distinctive labelling
Standard bundling, depending on dimensions
Bundles weighing from 700 to 1,500 kg each, depending on product type
Length: 6 metres. Special lengths made to order
QUALITY CONTROL
Mechanical Tests: Tensile Test, Flattening Test, Expansion Test, Impact Tests
Chemical Analyses
Visual Examination – Dimensional Inspection
QUALITY CERTIFICATES
Certificate 2.2 according to ELOT ΕΝ 10204
|
