Flats

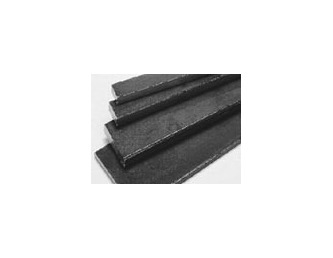

Rectangular flat bars (flats) are manufactured at SIDENOR’s factory in Thessaloniki, at a length of 6 metres, with widths from 20mm to 150mm and thickness ranging from 5mm to 20mm. Due to the wide range of available sizes, flats are used in various metal constructions, traditional railings, drillings, metal frames, machine parts, mechanical equipment, etc.
The STOMANA SA factory in Bulgaria manufactures large flats (widths from 80 to 180mm and thicknesses from 40 to 90mm) in a larger variety of steel grades, suitable for various applications, e.g. for the forks of the forklift trucks used in warehouses.
-
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES STEEL GRADE CHEMICAL COMPOSITION MECHANICAL PROPERTIES C (%) P (%) S (%) YIELD STRENGTH TENSILE STRENGTH ELONGATION max max max (N/mm2) min (N/mm2) 5d0, (%) min S235JR (St 37-2) 0.170 0.040 0.040 235 360-510 26 S275JR (St 44-2) 0.210 0.040 0.040 275 410-560 23 FEATURES TYPE: Hot-Rolled bars, of rectangular cross-section (Flats) STEEL GRADE: - S235JR according to ELOT-ΕΝ 10025 (St 37-2 according to DIN 17100)
- S275JR according to ELOT-ΕΝ 10025 (St 44-2 according to DIN 17100)FORM - DIMENSIONS: Straight bars with width from 10 to 150mm & thickness from 3 to 20mm LENGTH - TOLERANCE: Bar length 6 m with tolerance -0 / +100 mm PACKING - WEIGHT: Bundles weighing approximately 2,500 kg DIMENSIONS, WEIGHT, TOLERANCES: According to EN 10058 (DIN 1017) SIDENOR SA (ATHENS) - Export Dept.
Address: 33, Amaroussiou-Chalandriou street Postal Code: GR-15125 City: Athens Area: Attiki Country: GREECE Telephone: (+30)-210-6787111 Fax: (+30)-210-6787740 e-mail: SIDENOR SA (THESSALONIKI) - Export Dept. Address: 12th km National Road Thessaloniki-Veria Postal Code: GR-57008 City: Thessaloniki Area: Ionia Country: GREECE Telephone: (+30)-2310-790111 Fax: (+30)-2310-722288 e-mail: -
WEIGHTS & TOLERANCES for flats Merchant bars-flats
