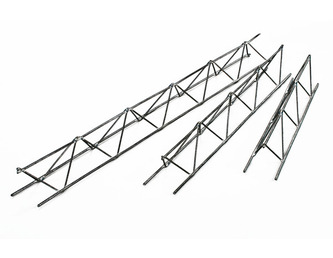

Lattice Girders

The Lattice Girders are produced with 2 longitudinal wires in the bottom flange and 1 wire on the top, welded together at regular distances using a smaller diameter secondary wire.

The top and bottom reinforcing wires are produced with SAE 1010 wire rod that after cold rolling acquires the mechanical characteristics of the required reinforcing steel (BSt500M according to DIN488).

Lattice Girders are used mainly as reinforcement of prefabricated slabs and beams where concreting is performed in two stages, offering the advantage of avoiding scaffolding and formwork needed in traditional construction.

Therefore, Lattice Girders are best suited when slab reinforcement is generally light while at the same time fast and no-formwork construction is needed.



  •

    CHARACTERISTICS
    TYPE: Lattice girders
    STEEL GRADE:

    Top and bottom reinforcing wires: Reinforcing steel grade BSt500M – DIN488

    Welded-Longitudinal wires: steel St37-2
    LENGTH - DIMENSIONS:

    Length: from 6 to 12m

    Welding spacing: 200mm



    TECHNICAL CHARACTERISTICS LATTICE GIRDERS
    HEIGHT H (mm)
    WIDTH B (mm)
    WELDING SPACING T (mm)
    DIAMETERS LONGITUDINAL WIRES
    WELDED WIRES D3 (mm)
    BOTTOM D2 (mm)
    TOP D1 (mm)
    70-220
    70-110
    200
    Ø4 to Ø10
    Ø5 to Ø10
    Ø4.2 to Ø6
