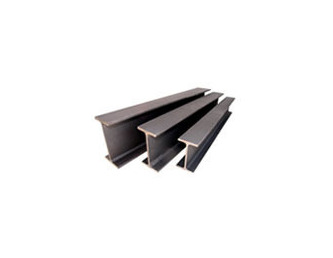

IPE Beams
I-section beams (IPE) are manufactured at SIDENOR’s factory in Thessaloniki, at lengths of 6 and 12 metres and with section heights ranging from 80mm to 120mm. IPE's are used in metal constructions such as metal building frames, supporting structures for roofs, lofts, attics, etc.
-
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES STEEL GRADE CHEMICAL COMPOSITION MECHANICAL PROPERTIES C (%) P (%) S (%) YIELD STRENGTH TENSILE STRENGTH ELONGATION max max max (N/mm2) min (N/mm2) 5d0, (%) min S235JR (St 37-2) 0.170 0.040 0.040 235 360-510 26 S275JR (St 44-2) 0.210 0.040 0.040 275 410-560 23 FEATURES TYPE: Hot-Rolled IPE Beams STEEL GRADE: - S235JR according to ELOT-ΕΝ 10025 (St 37-2 according to DIN 17100)
- S275JR according to ELOT-ΕΝ 10025 (St 44-2 according to DIN 17100)FORM - DIMENSIONS: Straight beams with height from 80 to 120 mm LENGTH - TOLERANCE: Beam length 6m - 12 m with tolerance -0 / +100 mm PACKING - WEIGHT: Bundles weighing approximately 2,000 kg DIMENSIONS, WEIGHT, TOLERANCES: According to EN 10034 (DIN 1025) DIMENSIONS, WEIGHTS & TOLERANCES
SYMBOL DIMESIONS (mm) NOMINAL CROSS-SECTION NOMINAL WEIGHT NOMINAL SURFACE AREA SECTION MODULUS h PERMISSIBLE VARIATION FOR h b PERMISSIBLE VARIATION FOR b s PERMISSIBLE VARIATION FOR s t PERMISSIBLE VARIATION FOR t Wx Wy (cm2) (kg/m) (m2/m) (cm3) (cm3) 100 100 ± 2.00 55 ± 2.00 4.1 ± 0.50 5.7 ± 1.00 10.3 8.1 0,400 34.2 5.79 120 120 ± 2.00 64 ± 2.00 4.4 ± 0.50 6.3 ± 1.00 13.2 10.4 0,475 53.0 8.65 SIDENOR SA (ATHENS) - Export Dept.
