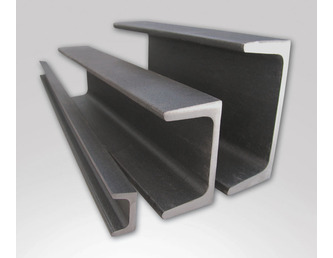

UPN Channels
UPN bars are manufactured at SIDENOR’s factory in Thessaloniki, at a length of 6 metres and with a section height of 30mm, as well as at STOMANA SA’s factory in Bulgaria, at lengths of 6 and 12 metres and with section heights ranging from 80mm to 140mm. Light UPN bars (30mm) are used mostly for making traditional railings, in combination with squares, while the heavier bars (UPN from 80 to 140mm) are used mainly in metal building frames, coachworks, car carriers, machine parts, and supporting structures for roofs, etc.
-
CHEMICAL COMPOSITION & MECHANICAL PROPERTIES STEEL GRADE CHEMICAL COMPOSITION MECHANICAL PROPERTIES C (%) P (%) S (%) YIELD STRENGTH TENSILE STRENGTH ELONGATION max max max (N/mm2) min (N/mm2) 5d0, (%) min S235JR (St 37-2) 0.170 0.040 0.040 235 360-510 26 S275JR (St 44-2) 0.210 0.040 0.040 275 410-560 23 FEATURES TYPE: Hot-Rolled UΡΝ Channels STEEL GRADE: - S235JR according to ELOT-ΕΝ 10025 (St 37-2 according to DIN 17100)
- S275JR according to ELOT-ΕΝ 10025 (St 44-2 according to DIN 17100)FORM - DIMENSIONS: Straight Bars with height from 30mm and 80mm to 140mm LENGTH - TOLERANCE: Beam length 6 m with tolerance -0 / +100 mm PACKING - WEIGHT: Bundles weighing approximately 2,000 kg DIMENSIONS, WEIGHT, TOLERANCES: According to EN 10279 (DIN 1026) DIMENSIONS, WEIGHTS & TOLERANCES NOM. DIMENSIONS (mm) NOMINAL CROSS SECTION NOMINAL WEIGHT NOMINAL SURFACE AREA SECTION MODULUS h PERMISSIBLE VARIATION FOR h b PERMISSIBLE VARIATION FOR b s PERMISSIBLE VARIATION FOR s t PERMISSIBLE VARIATION FOR t Wx Wy (cm2) (kg/m) (m2/m) (cm3) (cm3) 30x15 30 ± 1.50 15 ± 1.50 4.0 ± 0.50 4.5 ± 0.50 2.21 1.74 0.103 1.69 0.39 40x20 40 ± 1.50 20 ± 1.50 5.0 ± 0.50 5.5 ± 0.50 3.66 2.87 0.142 3.79 0.86 40x35 40 ± 1.50 35 ± 1.50 5.0 ± 0.50 7.0 ± 0.50 6.21 4.87 0.199 7.05 3.08 50x25 50 ± 1.50 25 ± 1.50 5.0 ± 0.50 6.0 ± 0.50 4.92 3.86 0.181 6.73 1.48 50x38 50 ± 1.50 38 ± 1.50 5.0 ± 0.50 7.0 ± 0.50 7.12 5.59 0.232 10.6 3.75 60x30 60 ± 1.50 30 ± 1.50 6.0 ± 0.50 6.0 ± 0.50 6.46 5.07 0.215 10.5 2.16 65x42 65 ± 1.50 42 ± 1.50 5.5 ± 0.50 7.5 ± 0.50 9.03 7.09 0.273 17.7 5.07 80 80 ± 2.00 45 ± 1.50 6.0 ± 0.50 8.0 ± 0.50 11.0 8.64 0.312 26.5 6.36 100 100 ± 2.50 50 ± 1.50 6.0 ± 0.50 8.5 ± 0.50 13.5 10.6 0.372 41.2 8,49 SIDENOR SA (ATHENS) - Export Dept.
