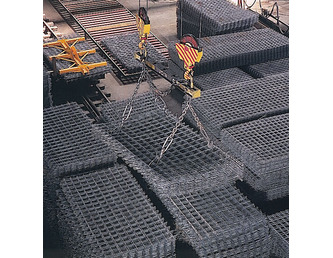

SD Wire Mesh

SIDENOR produces a wide range of wire mesh (BSt500M wires according to DIN 488). Wire mesh sheets are manufactured from welded transverse and longitudinal wires cold-drawn from SAE 1010 wire rod. The diameters of the wires range from Ø4.0 to Ø10.0mm in 2.15x5.00 or 2.15x6.00m external dimensions.  Other sizes and configurations can also be produced upon request.

  • CHARACTERISTCS
    TYPE: Wire mesh
    STEEL GRADE: Cross and longitudinal wires: : B500A according to ELOT 1421-2, (BSt500M according to DIN 488), produced from cold-drawn SAE1010 wire rod
    FORM - DIAMETER: Sheets 2.15m wide and 5.00m and 6.00m long
    PACKING - WEIGHT: Sheet stacks weighing 14 to 163kg per sheet, depending on type



    Customer requirements for other dimensions, as well as other recognized industrial standards, can be met upon request.



    WIRE MESH - DIMENSIONS AND WEIGHTS
    MESH TYPES
    WIRE DIAMETERS
    WIRE DISTANCES
    SHEET DIMENSIONS
    WEIGHTS
    Longitudinal D
    mm
    Transverse d
    mm
    "a" longitudinal
    Wires mm
    "t" Transverse
    Wires mm
    Length "L"
    mm
    Width "B"
    mm
    kg/m2
    kg/sheet
    R84
    4.0
    4.0
    150
    250
    6.000
    2.150
    1.098
    14.158
    R92
    4.2
    4.2
    150
    250
    6.000
    2.150
    1.152
    14.751
    R126
    4.0
    4.0
    100
    250
    6.000
    2.150
    1.423
    18.359
    R131
    5.0
    4.2
    150
    250
    6.000
    2.150
    1.485
    19.158
    R139
    4.2
    4.2
    100
    250
    6.000
    2.150
    1.567
    20.213
    R166
    4.6
    4.2
    100
    250
    6.000
    2.150
    1.784
    23.013
    R188
    6.0
    4.2
    150
    250
    6.000
    2.150
    2.005
    25.861
    R196
    5.0
    4.2
    100
    250
    6.000
    2.150
    2.032
    26.212
    R221
    6.5
    4.2
    150
    250
    6.000
    2.150
    2.357
    30.409
    R238
    5.5
    4.2
    100
    250
    6.000
    2.150
    2.373
    30.612
    R257
    7.0
    5.0
    150
    250
    6.000
    2.150
    2.750
    35.478
    R283
    6.0
    4.2
    100
    250
    6.000
    2.150
    2.735
    35.278
    R331
    6.5
    4.6
    100
    250
    6.000
    2.150
    3.212
    41.438
    R335
    8.0
    5.0
    150
    250
    6.000
    2.150
    3.406
    43.932
    R377
    8.5
    5.0
    150
    250
    6.000
    2.150
    3.758
    48.477
    R385
    7.0
    5.0
    100
    250
    6.000
    2.150
    3.743
    48.289
    R424
    9.0
    6.0
    150
    250
    6.000
    2.150
    4.413
    56.929
    R442
    7.5
    5.5
    100
    250
    6.000
    2.150
    4.342
    56.008
    R503
    8.0
    6.0
    100
    250
    6.000
    2.150
    4.979
    64.231
    R524
    10.0
    6.0
    150
    250
    6.000
    2.150
    5.245
    67.655
    R536
    9.0
    6.0
    100
    250
    6.000
    2.150
    6.054
    78.097
    R709
    9.5
    7.0
    100
    250
    6.000
    2.150
    6.969
    89.866



    WIRE MESH - DIMENSIONS AND WEIGHTS
    MESH TYPES
    WIRE DIAMETERS
    WIRE DISTANCES
    SHEET DIMENSIONS
    WEIGHTS
    Longitudinal D
    mm
    Transverse d
    mm
    "a" longitudinal
    Wires mm
    "t" Transverse
    Wires mm
    Length "L"
    mm
    Width "B"
    mm
    kg/m2
    kg/sheet
    Q84
    4.0
    4.0
    150
    150
    6.000
    2.150
    1.364
    17.598
    Q92
    4.2
    4.2
    150
    150
    6.000
    2.150
    1.502
    19.376
    Q98
    5.0
    5.0
    200
    200
    6.000
    2.150
    1.573
    20.297
    Q111
    4.6
    4.6
    150
    150
    6.000
    2.150
    1.791
    19.446
    Q126
    4.0
    4.0
    100
    100
    6.000
    2.150
    2.023
    26.098
    Q131
    5.0
    5.0
    150
    150
    6.000
    2.150
    2.122
    27.375
    Q139
    4.2
    4.2
    100
    100
    6.000
    2.150
    2.227
    28.730
    Q141
    6.0
    6.0
    200
    200
    6.000
    2.150
    2.268
    29.260
    Q166
    4.6
    4.6
    100
    100
    6.000
    2.150
    2.657
    34.279
    Q188
    6.0
    6.0
    150
    150
    6.000
    2.150
    3.059
    39.463
    Q196
    5.0
    5.0
    100
    100
    6.000
    2.150
    3.147
    40.596
    Q221
    6.5
    6.5
    150
    150
    6.000
    2.150
    3.583
    46.218
    Q238
    5.5
    5.5
    100
    100
    6.000
    2.150
    3.821
    49.295
    Q251
    8.0
    8.0
    200
    200
    6.000
    2.150
    4.036
    52.063
    Q257
    7.0
    7.0
    150
    150
    6.000
    2.150
    4.162
    53.684
    Q283
    6.0
    6.0
    100
    100
    6.000
    2.150
    4.537
    58.521
    Q331
    6.5
    6.5
    100
    100
    6.000
    2.150
    5.313
    68.538
    Q335
    8.0
    8.0
    150
    150
    6.000
    2.150
    5.443
    70.216
    Q377
    8.5
    8.5
    150
    150
    6.000
    2.150
    6.132
    79.104
    Q385
    7.0
    7.0
    100
    100
    6.000
    2.150
    6.171
    79.610
    Q393
    10.0
    10.0
    200
    200
    6.000
    2.150
    6.304
    81.323
    Q424
    9.0
    9.0
    150
    150
    6.000
    2.150
    6.876
    88.702
