INOMIX Steel Fibers

Steel fibers are part of the SD Integrated Concrete Reinforcing System. They are produced in a wide range of dimensions and cover all the possible applications of the market (shotcrete for tunnels, slabs on grade, industrial floors).

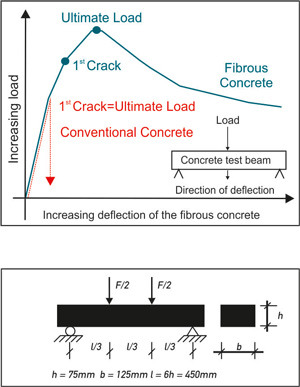

The fibers act on grain size of the concrete, add workability and provide three dimensional reinforcement.  The fiber's presence increases the total absorption of mechanical energy and provides the continuous and smooth deformation of the concrete.

CHARACTERISTICS OF FIBER REINFORCED CONCRETE



  • Increased bending strength





  • Crack control





  • Increased impact strength





  • Improved resistance in high temperatures





  • Improved resistance to splitting and shattering





  • Improved toughness





  • Improved compression strength after the first crack





  • Low maintenance cost and prolonged construction usage





  • CHARACTERISTICS
    MATERIAL:

    Cold drawn steel wire of high strength min 1,100 MPa

    TYPE:

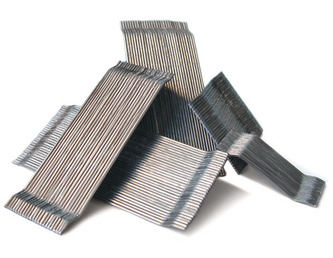

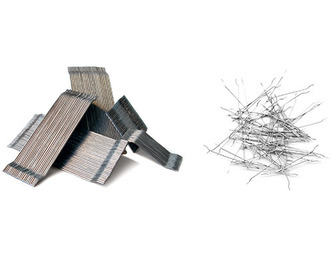

    - Straight hooked-end fibers

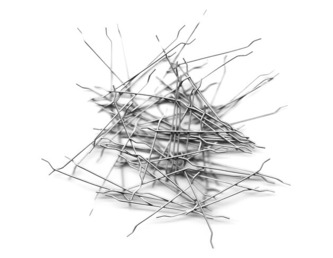

    - Undulated fibers
    DIMENSIONS:

    Length: 20-60mm

    Diameter: 0.75-1.00mm
    PACKING:

    - Paper bags of 20-30Kg on pallets of approx. 1,000Kg

    - Big Bags of approx. 1,000Kg
