Square

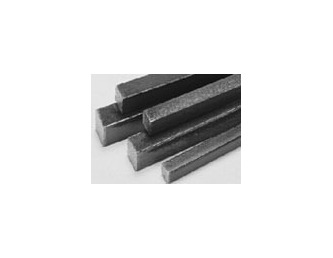

Square bars (squares) are manufactured at SIDENOR’s factory in Thessaloniki at a length of 6 metres and with a side length ranging from 10mm to 40mm. Squares are intended mostly for traditional railing makers and merchants, as well as for metal structures.





  • CHEMICAL COMPOSITION & MECHANICAL PROPERTIES
    STEEL GRADE CHEMICAL COMPOSITION MECHANICAL PROPERTIES
    C (%) P (%) S (%) YIELD STRENGTH TENSILE STRENGTH ELONGATION
    max max max (N/mm2) min (N/mm2) 5d0, (%) min
    S235JR (St 37-2) 0.170 0.040 0.040 235 360-510 26
    S275JR (St 44-2) 0.210 0.040 0.040 275 410-560 23





    FEATURES
    TYPE: Hot-Rolled Square Bars
    STEEL GRADE: S235JR according to ELOT-ΕΝ 10025 (St 37-2 according to DIN 17100)
    S275JR according to ELOT-ΕΝ 10025 (St 44-2 according to DIN 17100)
    FORM - DIMENSIONS: Straight Bars with side length from 10 to 40mm
    LENGTH - TOLERANCE: Bar length 6m with tolerance -0 / +100 mm
    PACKING - WEIGHT: Bundles weighing approximately 2,500 kg
    DIMENSIONS, WEIGHT, TOLERANCES: According to EN 10059 (DIN 1014)





    DIMENSIONS, WEIGHTS & TOLERANCES

    SIDE LENGTH a (mm) PERMISSIBLE DEVIATION (mm) NOMINAL CROSS-SECTION (cm²) NOMINAL WEIGHT (kg/m) NOMINAL SURFACE AREA (cm²/m) PERMISSIBLE DIAGONAL DIFFERENCE (%)
    10 ± 0.4 1.00 0.79 400 4.0
    12 ± 0.4 1.44 1.13 480 4.0
    14 ± 0.4 1.96 1.54 560 4.0
    16 ± 0.4 2.56 2.01 640 4.0
    18 ± 0.5 3.24 2.54 720 4.0
    20 ± 0.5 4.00 3.14 800 4.0
    22 ± 0.5 4.84 3.80 880 4.0
    25 ± 0.5 6.25 4.91 1,000 4.0
    30 ± 0.6 9.00 7.07 1,200 4.0
    35 ± 0.6 12.25 9.62 1,400 4.0
    40 ± 0.8 16.00 12.56 1,600 4.0
